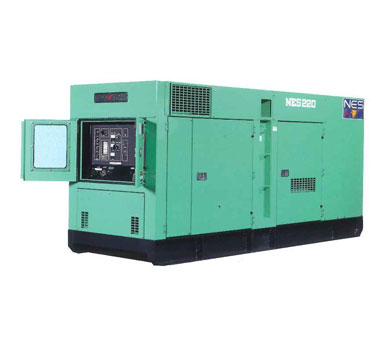

Transportable Diesel Generator
- High Quality General Output
- Anti Rust
- Emission Control
- Sound Level
- Economical
- Easy Access
Description
Silent TypeOutput of Generator SetThe output is based on JIS B 8002 standard conditions. Barometric pressure : 100 kPa(760 mmHg), Ambient temperature : 25°C, Relative Humidity : 30%, Output shall be de-rated by 11% for every 5°C up from the ambient temp. 25°C.
|
All models have been authorized as the low noise type diesel generator sets by the Ministry of Construction, Japan. Sound level at 7m distance, 60Hz, no-load condition NES13SI~NES300SME : Approx. 61dB ~ 67dB(A) NES350SM~NES800SM : Approx. 68dB ~ 73dB(A) All models are provided with thick steel plate enclosures, lined with sound-absorbing materials for noise prevention. |
| SYNCHRO-AUTO (option) | |

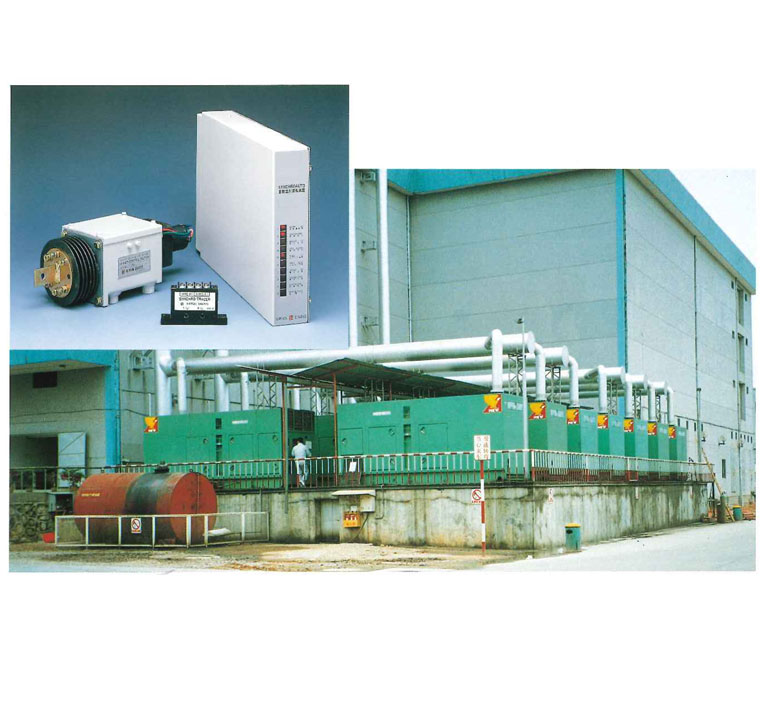

The Nippon Sharyo Synchro-Auto, a micro-computer-controlled automatic synchronizing and automatic load sharing device, has the following features:  |
1) Light, compact and simple to operate for its capacity. Available as a built-in attachment to the NES series generator set. 2) Excellent durability against climate extremes. High reliability with a detecting system of various faults for parallel running. 3) No limitation on the number of generator sets in parallel running, with up to 95% total coefficient of utility. 4)The Nes Series generator sets equipped with the SYNCHRO-AUTO are available for parallel running with the great majority of the sets produced by other manufactures.. |

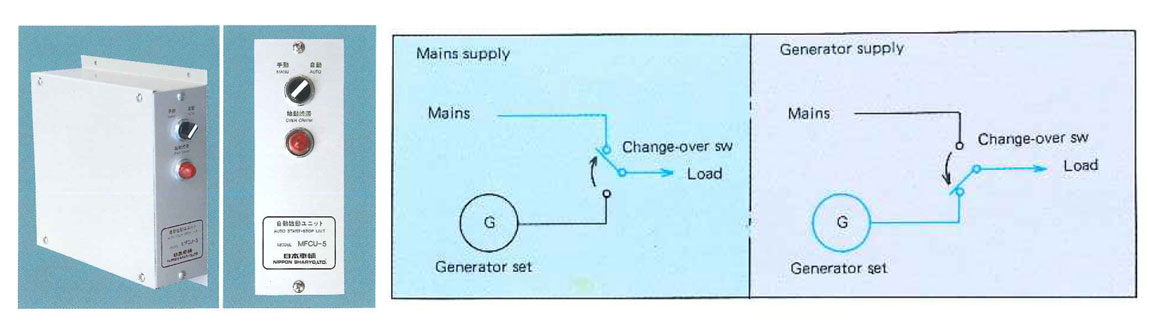

| AUTOMATIC MAINS FAILURE SYSTEM (option) | |
| The system consists of an auto. start-stop unit, an automatic change-over switch (customers preparations acceptable) and an automatic battery charger. Please consult with us about this system when required. | |
 |
|
Spesifikasi
| Model | NES 13SI |
NES 15SI |
NES 25SI-T |
NES 35SHE |
NES 45SHE |
NES 60SHE |
NES 75SHE |
NES 75SHE |
||
| Alternator | ||||||||||
| Output (kVA) | Stand by | 50 Hz | 11.5 |
13 |
21 |
31.5 |
39 |
55 |
68 |
79 |
| 60 Hz | 14 |
15.5 |
26 |
36.5 |
47 |
66 |
79 |
94 |
||
| Merge | 50 Hz | 10.5 |
12.5 |
20 |
30 |
37 |
50 |
65 |
75 |
|
| 60 Hz | 13
|
15 |
25 |
35 |
45 |
60 |
75 |
90 |
||
| Diesel Engine | ||||||||||
| Make | I |
I |
I |
H |
H |
H |
H |
H |
||
| Model | 3LD1 |
3LD1 |
4LE1 |
W04D-F |
W04D-F |
W06E-H |
W06E-H |
H07D-C |
||
| Aspiration | N |
N |
N |
N |
N |
N |
N |
N |
||
| Rated Output | 50 Hz | 10.2 |
12.2 |
19.1 |
28.6 |
34.9 |
50.3 |
58.8 |
69.8 |
|
| 60 Hz | 12.5 |
14.4 |
23.5 |
33.0 |
41.9 |
59.5 |
69.5 |
83.1 |
||
| No. of Cylinder | 3 |
3 |
4 |
4 |
4 |
6 |
6 |
6 |
||
| Piston Displacement | 1.50 |
1.50 |
2.18 |
4.01 |
4.01 |
6.01 |
6.01 |
7.41 |
||
| Capacity of Fuel Tank | 65 |
65 |
65 |
100 |
100 |
125 |
170 |
200 |
||
| Fuel Consumption | 2.3/ 2.9 |
2.5/ 3.1 |
3.8/ 4.8 |
5.6/ 6.7 |
6.7/ 8.2 |
8.9/ 10.9 |
11.0/ 13.0 |
13.2/ 16.0 |
||
| Dimensions & Mass | ||||||||||
| Length (mm) | 1500 |
1500 |
1580 |
2020 |
2020 |
2470 |
2630 |
2800 |
||
| Width (mm) | 750 |
750 |
690 |
880 |
880 |
880 |
1050 |
1050 |
||
| Height (mm) | 870 |
870 |
900 |
1300 |
1300 |
1300 |
1300 |
1400 |
||
| Mass (dry) (kg) | 510 |
520 |
590 |
1200 |
1200 |
1420 |
1650 |
1850 |
||
