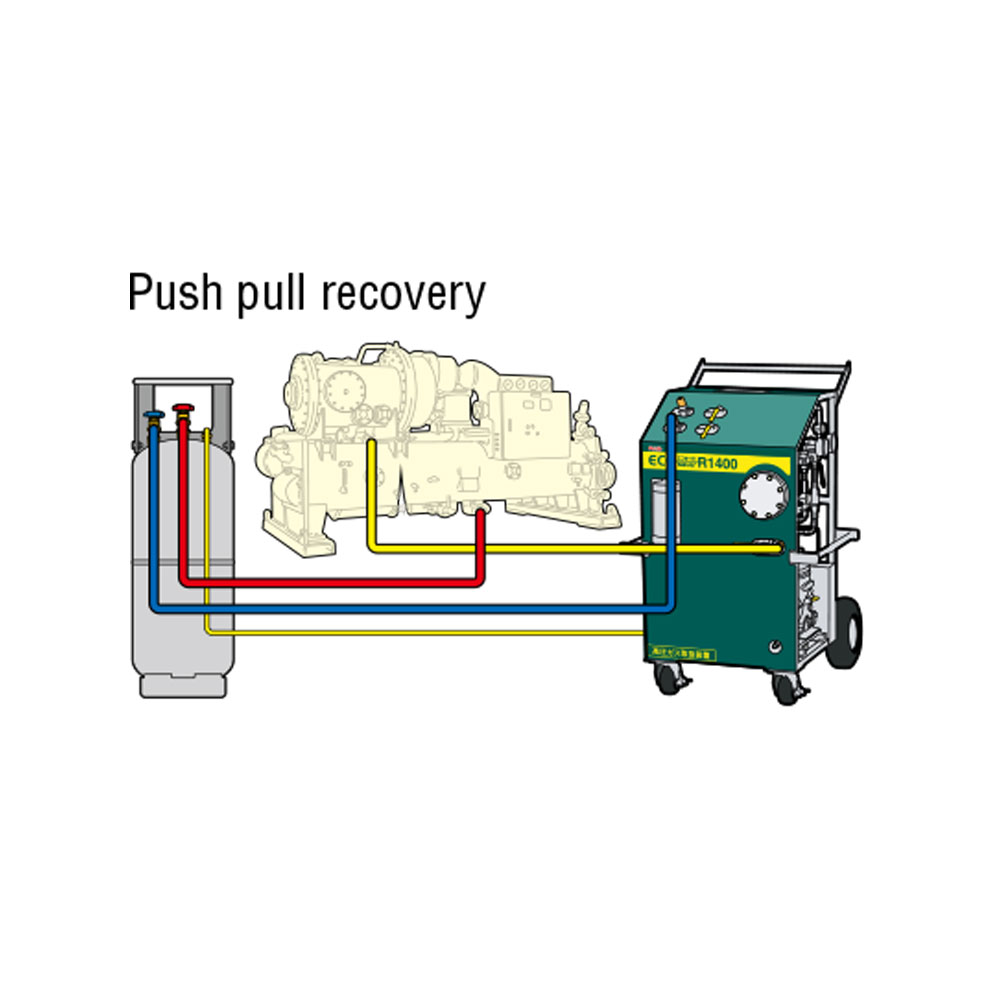

For push pull recovery from large A/C
- Eco Saver R1400 is an ideal machine for refrigerant recovery from large or small A/C systems,
- Centrifugal chillers and high pressure refrigeration installations.
- Also for moving refrigerant from small to larger tanks.
Description
| R22 Vapor Recovery : 2,700g/min | R22 Push Pull Recovery : 147,000g/min | "Fluorocarbons Recovery and Destruction" compliant machine |
| Eco Saver R1400 Eco Saver R1400 is an ideal machine for refrigerant recovery from large or small A/C systems, centrifugal chillers and high pressure refrigerant installations. Also for moving refrigerant from small to large tank. |
||
| 3/4" Refrigerant Recovery Cylinder 120L (with sensor) Port, valve, and siphon tube all using big diameter. The most suitable for recovery of large amount of refrigerant with big diameter port. |
||
Spesifikasi

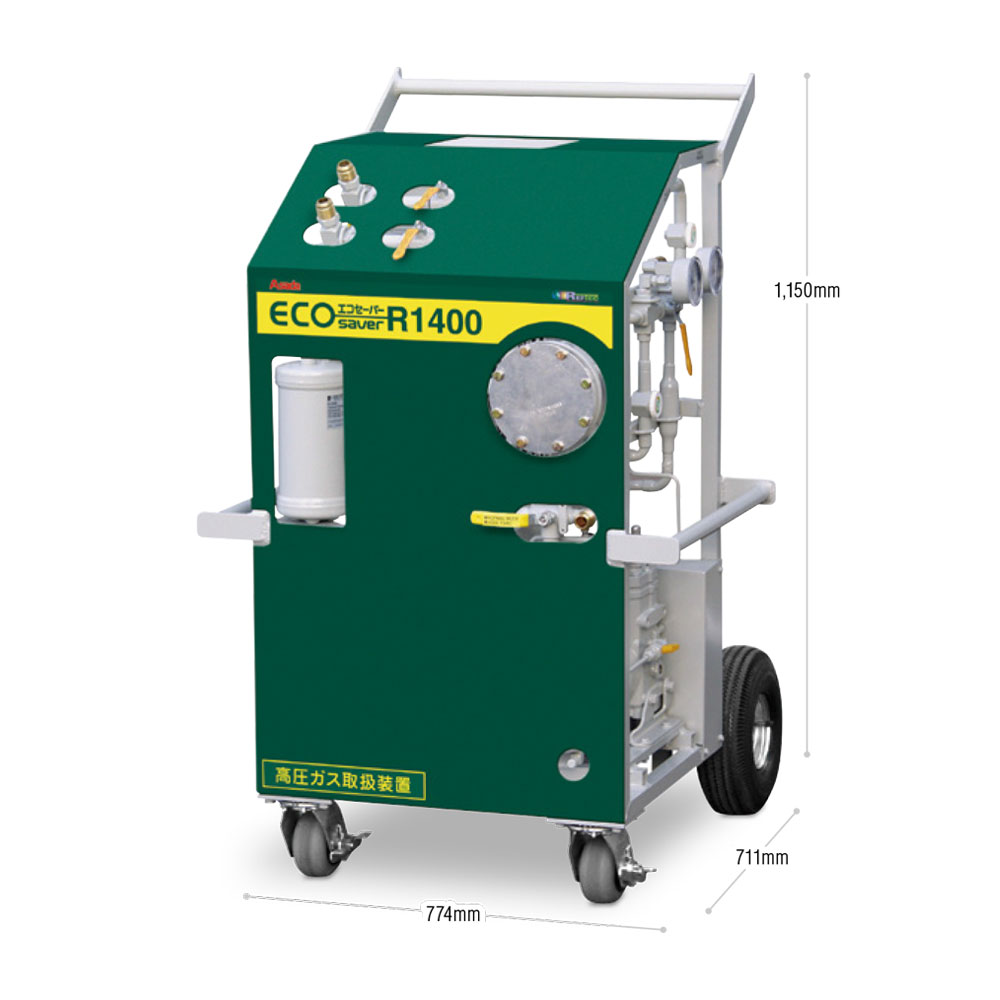

| Product | Eco Saver R1400 |
| Applicable Refrigerant | R12, R22, R500, R502, R114, R124, R134a, R403B, R404A, R407C, R407D, R412A, R413A, R417A, R422A, R422D, R423A, R507A, R509A |
| Recovery Method | Compressed vapor recovery / Push- pull |
| Voltage | made to order |
| Compressor | 2250W 2 piston open drive (oil in) compressor |
| Weight | 124.7kg |
| Operating Temperature Limit | 0 ~ 40°C |
| Ultimate Vacuum | Auto stop : - 0.044MPa ( - 330mmHg) Manual stop : Max - 0.098MPa ( - 735mmHg) |
| Applicable Cylinder | Float detection : Cylinder with sensor (3/4" port 120L) |
| Standard Accessories | Charging hose 3/4" 6m, Charging hose 3/4" 3m×2, 3/4" ball valve×4, Safety Cable, Filter dryer, Adapter for water cooling condenser×2, Adapter for different diameter 3/4"female×1/4" male× 3, Adater for different diameter 1/4" female ×3/4" male×3, 3/4"Flare swivel, R1400 filter 3/4"×3/4" |
