SUNFOODS HOSE [Model Number: E-SF]
- For Transferring Food, Beverage, Liquor and Brewing
- Pipes at Laboratory Equipment
- Cleaning Hose at the Factory
- Transferring Food Grade Oil and Mineral Oil
Description

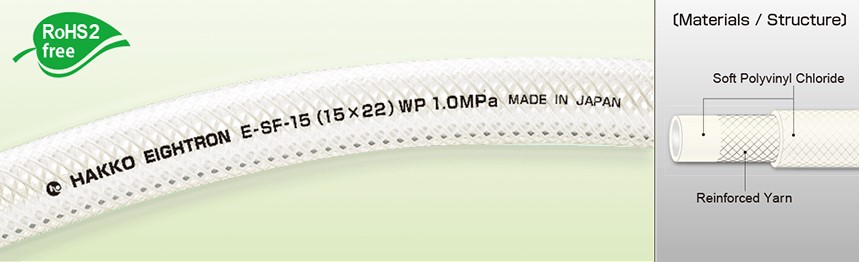

Food Grade and Industrial PVC Hose | Special, oil-proof plasticizer leads to the improvement in durability.
Characteristics and Functions:
- Food Grade...It is superior in flexibility and can transfer hot water (up to 70$^\circ$C), food, beverage, and fatty foods.
- Pressure-Proof...I.D. Size (6mm - 25mm) can stand up to 1.0MPa (10Bar) at 20$^\circ$C working pressure.
- Oil-Proof...Due to the high polymer oil-proof plasticizer, hose does not get harden even though the fluid is other than food grade oil.
- Easy to Cut...Since we print the cut mark on the hose every meter, it is easy to cut the length you would like to.
- Transparency...E-SF (natural color) enables you to check the fluid very easily.
- Original Fittings...By using our original fittings, you can avoid accidents which are caused by incorrect choices of hose and fittings. For more information on our original fittings, please scroll down to the end.
- Hose Cap...By sealing the hose end by hose cap, the inclusion of foreign matters is prevented. E-SF is tightened with hose cap only in the standard length.
Spesifikasi
| Model Number | Standard Length | I.D. $\times$ O.D. | Working Pressure | Working Pressure | Minimum Bend Radius |
| 20°C | 20°C | 20°C | |||
| m | mm | MPa | Bar | mm | |
| E-SF-6 | 100 | 6 x 11 | 0 - 1.0 | 0 - 10 | 35 |
| E-SF-8 | 8 x 13.5 | 50 | |||
| E-SF-9 | 9 x 15 | 55 | |||
| E-SF-10 | 10 x 16 | 60 | |||
| E-SF-12 | 12 x 18 | 70 | |||
| E-SF-15 | 50 | 15 x 22 | 80 | ||
| E-SF-19 | 19 x 26 | 115 | |||
| E-SF-25 | 25 x 33 | 150 | |||
| E-SF-32 | 40 | 32 x 41 | 0 - 0.5 | 0 - 5 | 190 |
| E-SF-38 | 38 x 50 | 230 | |||
| E-SF-50 | 50 x 63 | 0 - 0.3 | 0 - 3 | 300 |
- Temperature Range : 0 - 70°C
- Color : Natural
